3030 Series T-Slot Aluminium Extrusion Profile often matches with M8 bolt (L=20 mm) and nut. If you have any special request, please inform our business personnel. 30.30-2NVS Aluminium Extrusion T-Slot Profile. Choose from our selection of T-slotted extrusions, including T-slotted framing rails, T-slotted framing structural brackets, and more. In stock and ready to ship. TSLOTS CATALOG - TSLOTS Aluminum Extrusion Manufacturer. Framing profiles for T-slot structural framing systems are straight sections of extruded aluminum used to create custom building projects. These bars have recessed T-slots that accept hardware for creating joints or mounting components like hinges, connectors, and support plates.
'TSI has shown great support with our projects by making recommendations on a given design to make it working and cost-effective. They are very responsive when we ask questions and always willing to support whatever needs we may have in a very timely manner. Thank you.'
Teddy Kimn
Mechanical Engineer
NSI-MI Technologies
Suwanee, GA
With 25+ years of specifying, designing, fabricating and assembling T-Slot projects, we have the experience and the know-how to produce an assembly or kit for you quickly, efficiently and cost-effectively.
As Georgia’s only stocking and machining center for T-Slot extrusion, we are able to provide local technical support and fast turnaround on orders. This means you will get competitive pricing and reduced freight and handling costs.
Local Inventory (Stone Mountain, Georgia)
Engineering & Design
Complete Machining Services
Assembly & Testing
Kitting & Packaging
Call our Inside Sales department today at (770) 879-3500 for a consultation or quote on your next machine frame, work station, fixture, enclosure or guard.
Perhaps you don’t have a specific project in mind -- you’re simply interested in learning how T-Slot aluminum extrusion can make your life easier. We welcome the opportunity to conduct an “Introduction to T-Slots” session at your facility. Schedule a date or call us at (770) 879-3500.
- No welding required, which means no heat stress or warping, no long delays waiting for the project to make it through the weld shop
- No painting or surface preparation
- High strength-to-weight ratio
- Aluminum is easy to machine
- Assembly is done with simple hand tools
- No expensive fabricating equipment is required
- Frames and assemblies built with T-Slot extrusion are easily adjusted, modified or re-configured to accommodate design changes
- T-Slot extrusion looks great and won’t rust
Kind Words from A Customer
“My experience with TSI Solutions was fantastic. The end result was better than I expected. You gave us a profile that didn’t have grooves in it so the outcome looks very professional. Our other vendor provided the grooves and it tends to trap dirt and debris. Next, you tapped the top holes for the table to be mounted on which is work I don’t have to do. Lastly, you even included the hardware to mount the two steel tables with so I don’t have to track that down. Overall, Matt Martin of TSI Solutions and the assembly team did an awesome job.”
Todd Leonard
Megadyne Belt Corporation
If you are new to T-slot aluminum extrusion and would like a hands-on demonstration of its benefits and applications, we would be happy to visit your facility or have you visit ours. Call us to schedule an appointment at 770-879-3500or you can e-mailus.
Sales / Support
1-800-342-4874 sales@tsisolutions.us
TSI Solutions
2220 Centre Park Court
Stone Mountain, GA 30087
30 series T-slot Aluminium Extrusion covers 30×30, 30×30-2NVS, 30×30RQ, 30×30W, 30×60, 30×90, 30×120 and 30×150 aluminium profiles.
Specification:
Code: S8-30×30
Slot Width: 8.2 mm
Weight: 0.95 kg/m
Mass of Inertia: lx: 2.86 cm4 ly: 2.85 cm4
Section Modulus: zx: 1.80 cm3 zy: 1.80 cm3
Summary:
Order No: HY-S8-3030, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2 mm.
3030 profile’s slot width is 8.2 mm, and T-slot height is 9.2 mm, ideal for medium-duty, medium-stress construction, such as guarding, partitions, shelves, etc. Its appearance adopts round angle transition; the elegant surface is anodized and resists corrosion. Silver and black colors are available.
3030 Series T-Slot Aluminium Extrusion Profile often matches with M8 bolt (L=20 mm) and nut. If you have any special request, please inform our business personnel.
Specification:
Code: S8-30×30-2NVS
Slot Width: 8.2 mm
Weight: 1.02 kg/m
Mass of Inertia: lx: 2.98 cm4 ly: 2.98 cm4
Section Modulus: zx: 2.05 cm3 zy: 2.05 cm3
Summary:
Order No: HY-S8-3030-2NVS, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2 mm.
3030-2NVS profile has two adjacent slots; two sides are closed. The slot width is 8.2 mm and height is 9.2 mm, ideal for medium-duty construction. Two closed T-slots provide neat, finished appearance. It’s very suitable to those framework structures that have high seal requirement.
Specification:
Code: S8-30×30RQ
Slot Width: 8.2 mm
Weight: 0.90 kg/m
Mass of Inertia: lx: 2.52 cm4 ly: 2.52 cm4
Section Modulus: zx: 1.51 cm3 zy: 1.51 cm3
Summary:
Order No: HY-S8-3030RQ, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, R= 25°, Hole: φ6.8 mm, Thickness of diagonal bar: 1.8 mm.
3030RQ profile is semi-circular; it’s usually used to make columns of framework, and its exterior uses round angle transition. Apply to automotive, factory automation and industrial module structure or other special areas.
The application of 3030RQ is different to other profiles that directly connect with bolt & nut; it usually uses three profiles connecting parts with three-dimensions, matching with the bolt connection; 3030RQ profile end needs tapping.
Specification:
Code: S8-30×30W
Slot Width: 8.2 mm
Weight: 1.05 kg/m
Mass of Inertia: lx: 3.35 cm4 ly: 3.35 cm4
Section Modulus: zx: 2.82 cm3 zy: 2.82 cm3
Summary:
Order No: HY-S8-3030W, T-slot height: 9.2 mm, Section size: 30 mm × 30 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.
3030W is heavy support aluminium profile; its wall thickness is 2.2 mm which attaches high tension and strength performance. Widely used in various structures and has good bearing performance. Appropriate accessories should be selected according to the application environment, any problem please get in touch with our marketing personnel.

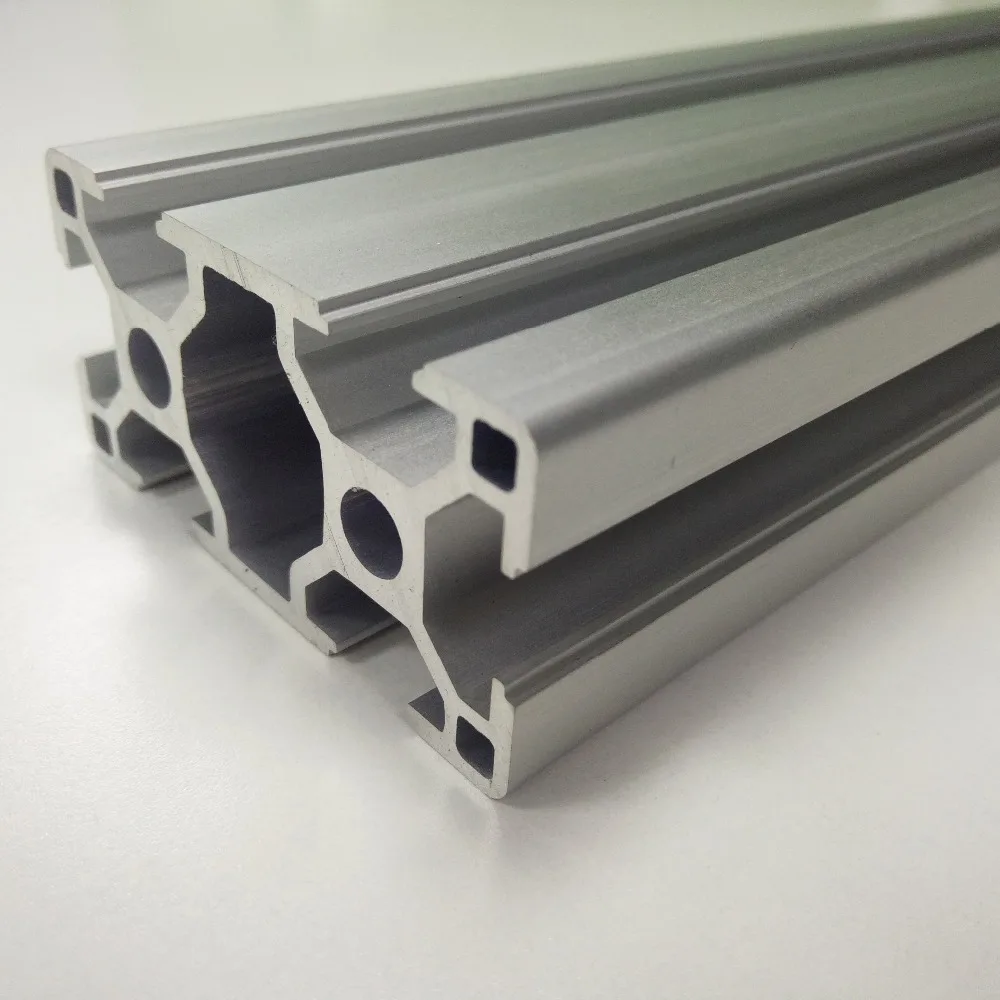

Specification:
Code: S8-30×60
Slot Width: 8.2 mm
Weight: 1.75 kg/m
Mass of Inertia: lx: 19.80 cm4 ly: 5.15 cm4
Section Modulus: zx: 6.60 cm3 zy: 3.30 cm3
Summary:
Order No: HY-S8-3060, T-slot height: 9.2 mm, Section size: 30 mm × 60 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.
3060 profile usually applies to engraving machines; it has one slot in 30 mm section and two slots in 60 mm section, also use in aluminium framework. It’s one of the most widely used aluminium profiles in the industrial framework.
Anodizing surface treatment without secondary pollution and frame assembly are very beautiful, silver color is most popular. 3060 Series T-Slot Aluminium Extrusion Profile matches usage with M6 T-bolt & M6 Flange nut, this combination will make the framework much steadier and sturdier.
Specification:
Code: S8-30×90
Slot Width: 8.2 mm
Weight: 2.45 kg/m
Mass of Inertia: lx: 61.18 cm4 ly: 7.83 cm4
Section Modulus: zx: 13.59 cm3 zy: 5.22 cm3
Summary:
Order No: HY-S8-3090, T-slot height: 9.2 mm, Section size: 30 mm × 90 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.2 mm, Wall thickness: 2.2 mm.
Because of high tension and strength, 3090 profile is widely applied to the framework of overloaded structures playing a supporting role.
The accessories that matched bolt & nut could be M6 T-bolt & M6 Flange nut, special M6 T-nut & core screw internal connection for optional. Please kindly notice that the brackets should be selected when using bolt & nut. The stability and bearing force of the framework must be taken into account when choosing the connection mode.
Specification:
Code: S8-30×120
Slot Width: 8.2 mm
Weight: 3.20 kg/m
Mass of Inertia: lx: 136.88 cm4 ly: 10.08 cm4
Section Modulus: zx: 21.67 cm3 zy: 6.47 cm3
Summary:
Order No: HY-S8-30120, T-slot height: 9.2 mm, Section size: 30 mm × 120 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.4 mm, Wall thickness: 2.4 mm.
30120 profile’s wall thickness is 2.4 mm, weight 3.2 kg/m; the edges are treated with the method of chamfered; anodized surface finish, beautiful appearance and corrosion resistance.
30120 profile is widely used in aluminium framework system of overloaded structures, the matching accessories could be M6 T-bolt & M6 Flange nut, special M6 T-nut & core screw internal connection for optional. More questions please email us or directly contact our marketing personnel.
Aluminum Extrusion
Specification:
Code: S8-30×150
Slot Width: 8.2 mm
Weight: 3.95 kg/m
Mass of Inertia: lx: 265.83 cm4 ly: 12.92 cm4
Section Modulus: zx: 35.44 cm3 zy: 8.61 cm3
Summary:
Order No: HY-S8-30150, T-slot height: 9.2 mm, Section size: 30 mm × 150 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.1 mm, Wall thickness: 2.2 mm.
30150 profile is the biggest one in 30 series; it has 150 mm section and good weight capacity, mainly application in the fields of industrial aluminium system and some special frameworks, the connection mode with accessories are inner join and outer join, usually chooses bracket.
Specification:
Code: S8-30×150W
Slot Width: 8.2 mm
Weight: 8.20 kg/m
Mass of Inertia: lx: 455.75 cm4 ly: 23.79 cm4
Section Modulus: zx: 60.77 cm3 zy: 15.86 cm3
Summary:
T-slot Track
Order No: HY-S8-30150W, T-slot height: 12.5 mm, Section size: 30 mm × 150 mm, Hole: φ12 mm, Thickness of diagonal bar: 4 mm.
From the picture above and major parameter weight 8.2 kg/m and thickness 4 mm, we can image that 30150W (W stands for weight) has higher tension and strength, greater bearing force than other 30 series profile. So how to select right bolt & nut and adopt perfect connection mode, we will provide you with the best solution according to practical usage and applied situation. Please email or call us now!
