Our well casing is produced from Type 1, Grade 1 virgin compound which exceeds the materials requirements for ASTM Standard F-480. This product is specifically manufactured for use in water well construction.
IC-2 rated products are tested to withstand higher / more stringent impact standards.
Well Casing – Schedule 40 PVC
Standard Compliances:

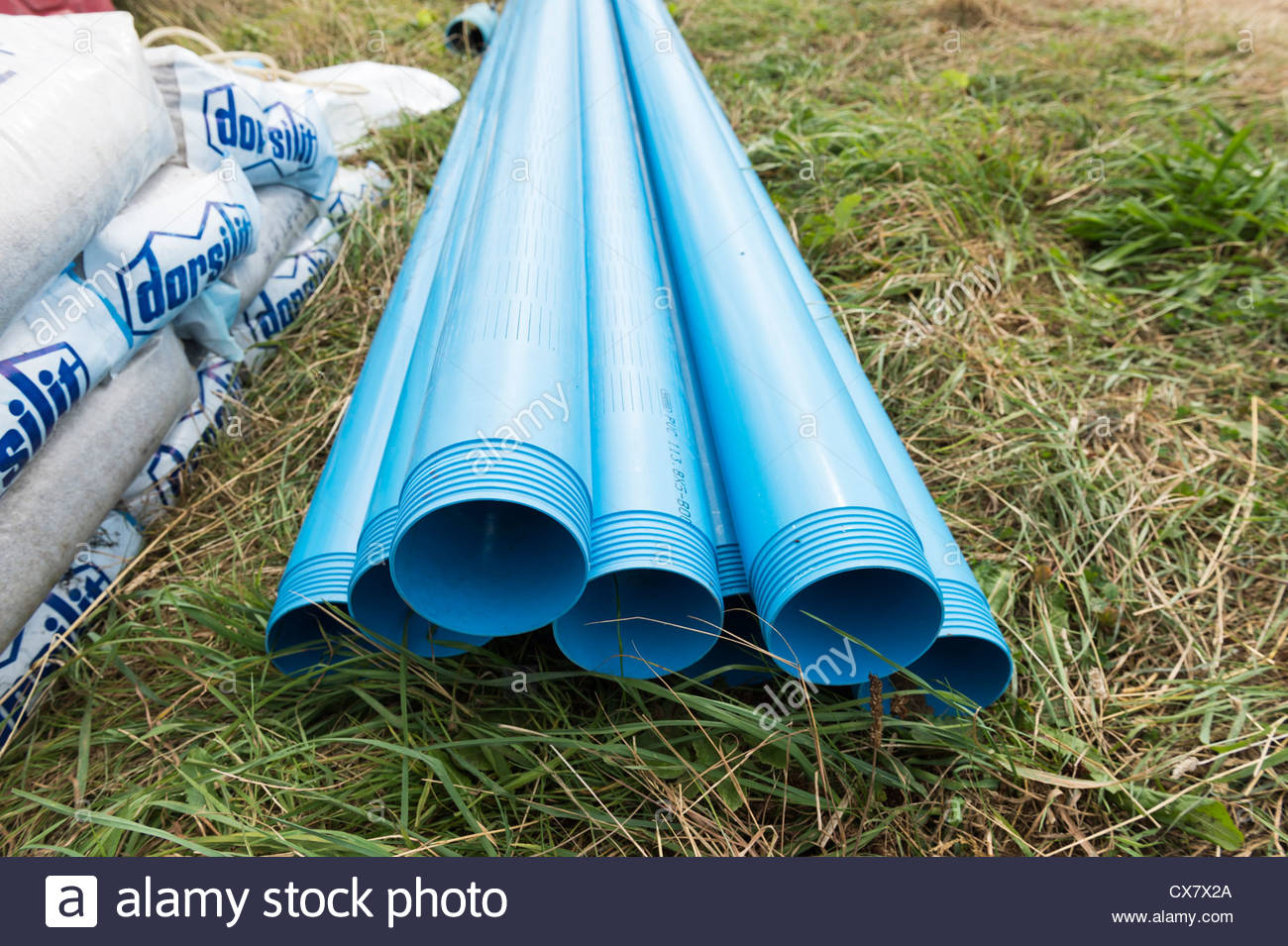

PVC Perforated Pipes & Slotted Pipes. We are leading manufacturer & exporter of a wide range of PVC slotted pipes. Our PVC Perforated Pipes & Slotted Pipes are ideally suited for usage in subsurface drainage systems & extensively used for drainage in Sports fields, Agricultural Fields, Road Drainage, Air ports, Podium Gardens and Building Basements in construction. At Wing Shot Well Products, we use only the most popular and up to date slotting machines in the industry, to produce a high quality PVC Slotted Pipe that maximizes both water flow and efficiency. Our Slotted Pipe is fabricated from PVC Pipe and Well Casing, which meets and exceeds industry standards. Northern Pipe Products PVC pressure rated water well casing pipe is manufactured from compounds conforming to requirements of ASTM F480 in accordance with ASTM D1784 with cell classification 12454. The belled end pressure pipe meets or exceeds specification ASTM F480 and is available in sizes 2' through 16'. Length up to 6 m Surface treatment painting or galvanzied End connection plain beveled or flanged or couplings. Advantage of the bridge slot water well screen tubes: 1.high strength well screen 2.long usage time bridge slot screen 3.thin weight 4.low cost screen pipe 5.easier operation to save more time 6. Slotted screens can be fabricated from the lightest class PVC to the heaviest. We can slot pipe from ½” diameter through 18″ diameter and up to 20′ lengths. Slot sizes.008 and wider are.
- ASTM D-1785, standard for pressure pipe (NSF®-pw-G)
- ASTM D-2665, standard for DWV (NSF®-dwv)
- ASTM F-480, standard for well casing (NSF®-wc)
Material complies with ANSI / NSF® Standard 14.
2″ – 10″ are laying length
4″ – 8″ are IC-2 Rated
5″ is dual rated Sch 40 / SDR 21
Pvc Pipe Caps 6 Inch
SCH 40 Well Casing. Belled End 20ft.
| Resistance to Hydraulic Collapse | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Item Number | Outside Diameter | Min. Wall Thickness | Max Inside Diameter (Value) | Min Inside Diameter (Value) | Bell Depth (inch) | Outside Bell Diameter | Socket Entrance Diameter | Wt/100' | Ft/Pallet | PSI | Depth (FT) |
| 2' | 152071 | 2.375 | 0.154 | 2.073 | 2.021 | 3 1/2 | 2.712 | 2.386 | 70 | 2,800 | 291 | 672 |
| 3' | 152079 | 3.500 | 0.216 | 3.076 | 3.008 | 5 1/4 | 3.972 | 3.514 | 144 | 1,500 | 250 | 577 |
| 4' | 152081 | 4.500 | 0.237 | 4.035 | 3.961 | 6 | 5.019 | 4.517 | 205 | 580 | 152 | 351 |
| 5' | 152108 | 5.563 | 0.265 | 5.043 | 4.975 | 7 | 6.146 | 5.584 | 295 | 460 | 111 | 256 |
| 6' | 152118 | 6.625 | 0.280 | 6.076 | 5.986 | 7 | 7.242 | 6.648 | 364 | 520 | 77 | 178 |
| 8' | 152127 | 8.625 | 0.322 | 7.996 | 7.888 | 7 1/4 | 9.332 | 8.649 | 546 | 280 | 52 | 120 |
| 10' | 522039 | 10.750 | 0.365 | 10.035 | 9.917 | 8 | 11.570 | 10.796 | 753 | 220 | 39 | 90 |
| 12' | 522041 | 12.750 | 0.406 | 11.953 | 11.825 | 9 1/2 | 13.639 | 12.778 | 1000 | 80 | 32 | 74 |
Well Casing – SDR 17 PVC
Standard Compliances:
- ASTM F-480, standard for well casing (NSF®-wc)
Material complies with ANSI / NSF® Standard 14
All sizes are laying length and IC-2 Rated
SDR 17 Well Casing. Belled End 20ft.
| Resistance to Hydraulic Collapse | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Item Number | Outside Diameter | Min. Wall Thickness | Max Inside Diameter (Value) | Min Inside Diameter (Value) | Bell Depth (inch) | Outside Bell Diameter | Socket Entrance Diameter | Wt/100' | Ft/Pallet | PSI | Depth (FT) |
| 5' | 152107 | 5.563 | 0.327 | 4.919 | 4.821 | 7 | 6.277 | 5.584 | 360 | 460 | 215 | 497 |
| 6' | 152117 | 6.625 | 0.390 | 5.856 | 5.740 | 7 1/4 | 7.475 | 6.648 | 496 | 520 | 215 | 497 |
Well Casing – SDR 21 PVC
Standard Compliances:
- ASTM D-2241, standard for pressure pipe (NSF®-pw-G)
- ASTM F-480, standard for well casing (NSF®-wc)
Material complies with ANSI / NSF® Standard 14.
All sizes are laying length
5″ and 6″ are IC-2 rated
5″ is dual rated Sch 40 / SDR 21
SDR 21 Well Casing. Belled End 20ft.
| Resistance to Hydraulic Collapse | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Item Number | Outside Diameter | Min. Wall Thickness | Max Inside Diameter (Value) | Min Inside Diameter (Value) | Bell Depth (inch) | Outside Bell Diameter | Socket Entrance Diameter | Wt/100' | Ft/Pallet | PSI | Depth (FT) |
| 2' | 225010 | 2.375 | 0.113 | 2.155 | 2.103 | 3 1/2 | 2.626 | 2.386 | 53 | 2,800 | 111 | 256 |
| 3' | 225013 | 3.500 | 0.167 | 3.174 | 3.118 | 5 1/4 | 3.868 | 3.514 | 114 | 1,500 | 111 | 256 |
| 4' | 152082 | 4.500 | 0.214 | 4.081 | 4.011 | 6 | 4.971 | 4.517 | 189 | 580 | 111 | 256 |
| 5' | 152108 | 5.563 | 0.265 | 5.043 | 4.975 | 7 | 6.146 | 5.584 | 295 | 460 | 111 | 256 |
| 6' | 152118 | 6.625 | 0.316 | 6.004 | 5.906 | 7 1/4 | 7.318 | 6.648 | 412 | 520 | 111 | 256 |
| 8' | 152128 | 8.625 | 0.410 | 7.820 | 7.692 | 7 1/4 | 9.517 | 8.649 | 688 | 280 | 111 | 256 |
| 10' | 152133 | 10.750 | 0.511 | 9.743 | 9.591 | 8 | 11.859 | 10.796 | 1088 | 220 | 111 | 256 |
Swipe to see more...Pvc Well Drop Pipe
Well Casing – SDR 26 PVC
Standard Compliances:
- ASTM D-2241, standard for pressure pipe (NSF®-pw-G)
- ASTM F-480, standard for well casing (NSF®-wc)
6 Slotted Pvc Well Pipe Point
Material complies with ANSI / NSF® Standard 14.
All sizes are laying length
5″ – 8″ are IC-2 rated
SDR 26 Well Casing. Belled End 20ft.
| Resistance to Hydraulic Collapse | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Item Number | Outside Diameter | Min. Wall Thickness | Max Inside Diameter (Value) | Min Inside Diameter (Value) | Bell Depth (inch) | Outside Bell Diameter | Socket Entrance Diameter | Wt/100' | Ft/Pallet | PSI | Depth (FT) |
| 4' | 152084 | 4.500 | 0.173 | 4.163 | 4.105 | 6 | 4.884 | 4.517 | 156 | 580 | 58 | 134 |
| 5' | 152109 | 5.563 | 0.214 | 5.145 | 5.071 | 7 | 6.038 | 5.584 | 240 | 460 | 58 | 134 |
| 6' | 152119 | 6.625 | 0.255 | 6.126 | 6.042 | 7 1/4 | 7.189 | 6.648 | 336 | 520 | 58 | 134 |
Well Casing – Specialty Sizes
Standard Compliances:
- ASTM F-480, standard for well casing (NSF®-wc)
Material complies with ANSI / NSF® Standard 14.
All sizes are laying length and IC-2 rated
4-1/2″ is dual rated Sch 40 / SDR 21
6 Slotted Pvc Well Pipe
Well Casing Specials. Belled End 20ft.
| Resistance to Hydraulic Collapse | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Item Number | Product Type | Outside Diameter | Min. Wall Thickness | Max Inside Diameter (Value) | Min Inside Diameter (Value) | Bell Depth (inch) | Outside Bell Diameter | Socket Entrance Diameter | Wt/100' | Ft/Pallet | PSI | Depth (FT) |
| 4-1/2' | 152098 | SDR 17 | 4.950 | 0.291 | 4.378 | 4.308 | 6 1/4 | 5.585 | 4.968 | 275 | 520 | 215 | 497 |
| 4-1/2' | 152099 | SDR 21 | 4.950 | 0.190 | 4.580 | 4.510 | 6 1/4 | 5.371 | 4.968 | 187 | 520 | 58 | 134 |
| 4-1/2' | 152097 | SCH 40 / SDR 21 | 4.950 | 0.248 | 4.464 | 4.414 | 6 1/4 | 5.494 | 4.968 | 240 | 520 | 130 | 300 |
| 6-1/8' I.D. | 152125 | SDR 21 | 6.900 | 0.329 | 6.253 | 6.180 | 7 1/4 | 7.619 | 6.922 | 445 | 400 | 111 | 256 |
| 6-1/4' I.D. | 152126 | SDR 27.6 | 6.900 | 0.250 | 6.411 | 6.324 | 7 1/2 | 7.452 | 6.922 | 345 | 400 | 48 | 111 |
